Durable High Temperature Vacuum Furnace 0.006 Pa Pressure For Oil Quenching

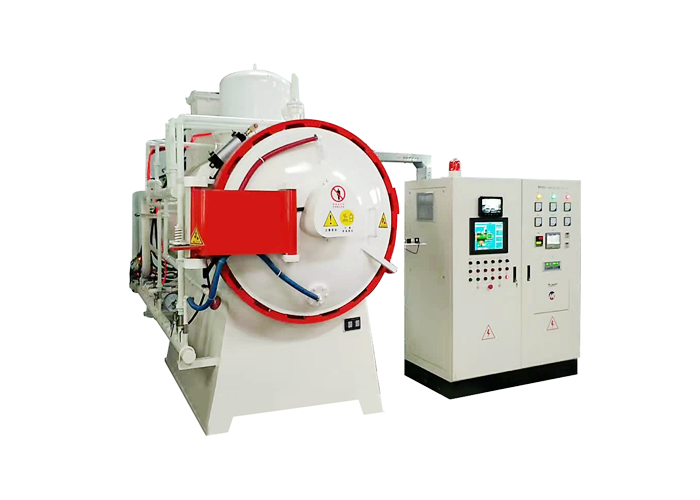

Vacuum Oil Quenching Furnace

The vacuum oil quenching furnace is mainly used in bright quenching and annealing of alloy steel, tool steel, die steel, high speed steel, bearing steel, spring steel, stainless steel. Also used in vacuum sintering of ceramic and hard alloy, metal material brazing, etc. The furnace is mainly composed of graphite chamber, graphite felt induction, PLC control system.

• Adopt the graphite tube as the heating element, with long lifetime and easy maintenance.
• The compound flash-board has excellent heat insulation and trapping effect.
• The structure is a double room, the back room is for heating and the front room is for oil and gas cooling. The upside is the gas quenching room and the downside is the oil quenching room, including lifting device, charging device, oil mixing device, and oil heating device.
• Lifting device: The lifting skip car is driving by screw and nut, and driving by a three-speed gear motor. There is three speed on lifting skip car, low speed for sending material, low-speed start, high-speed oil quenching, and low-speed location.
• Oil mixing system: The mixer is driving by the reducer, the deflector could promote the circular flowing of vacuum quenching and promote the oil cooling capacity. The mixer is a standard part of low noise and high efficiency.
• The workpiece transfer is smooth and flexible, safe and reliable.
• The gas cooling cover adopts a staggered teeth flange structure to ensure the sealing in positive and negative pressure.

Technical parameter:

Why Us?

Manufacturer with 10+ years' experience

• Best quality
• Customized design
• Experienced workers
• Big factory

Customers from more than 30 countries choose us

• Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response

• Free design for special furnace
• Free technical support for the lifetime
• Free sample test
